MEMS Etching

Powering the most dynamic applications

Etch processes are fundamental to MEMS and microfabrication. Teledyne MEMS’ development team has broad experience in numerous selective-etch techniques in both dry and wet processes.

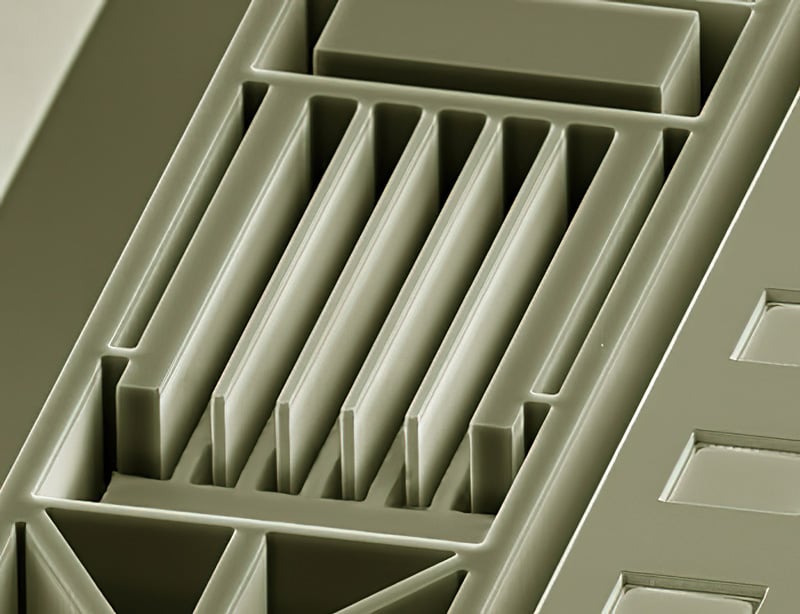

Deep Reactive Ion Etch (DRIE)

DRIE (Deep Reactive Ion Etch)Teledyne MEMS has created proven processes for heat-sensitive membrane and mirror-release etching processes, as well as vacuum tape bonding for through-wafer etches.

  • High aspect ratio (up to 50:1 aspect ratio, sidewall angle 89.5° to 89.8° and etch rate up to 16 µm/min, etch depths < 1µm to > 1000 µm)
  • Positive profile and isotropic etching
  • Heat-sensitive membrane etch
  • Mirror release etch
  • Through-wafer etch
text image

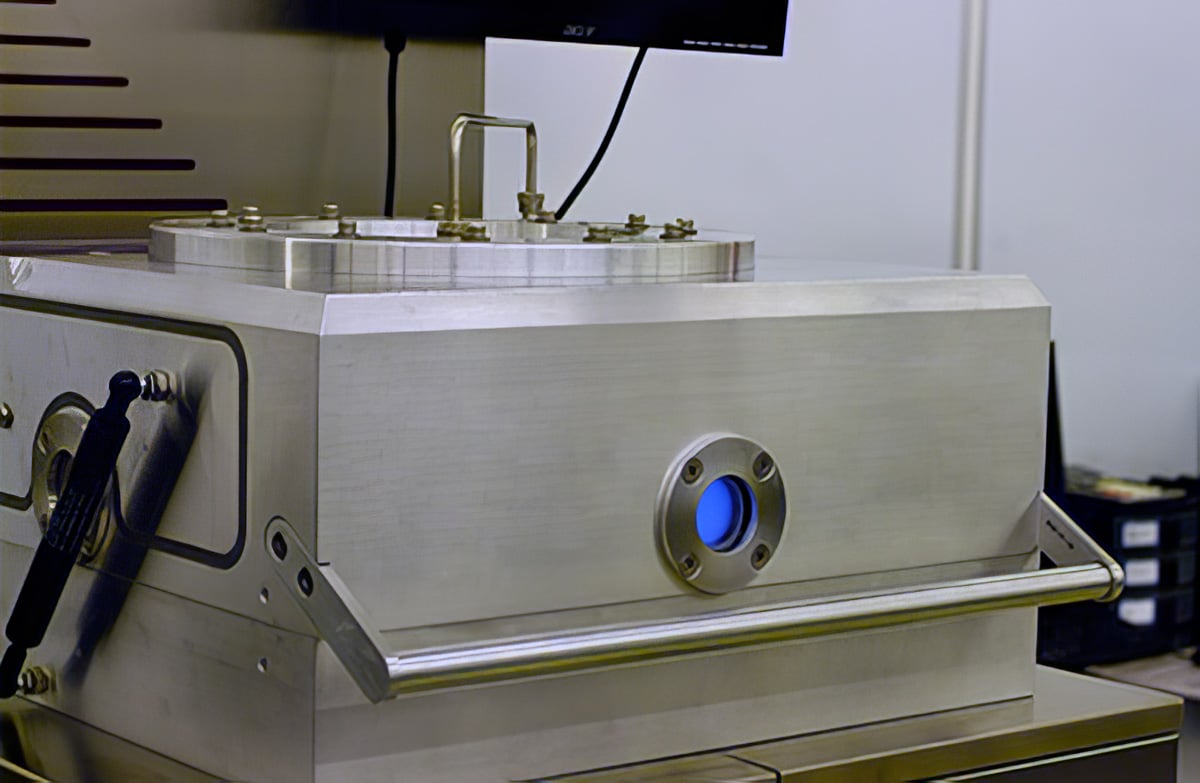

Reactive Ion Etch (RIE)

text image block
  • Silicon, quartz, oxide, nitride, polysilicon, oxynitride, Ti, TiW, Nb
  • Wafer edge protection for KOH/TMAH mask etch layers
  • Deep trench oxide etch (up to 10:1 aspect ratio)

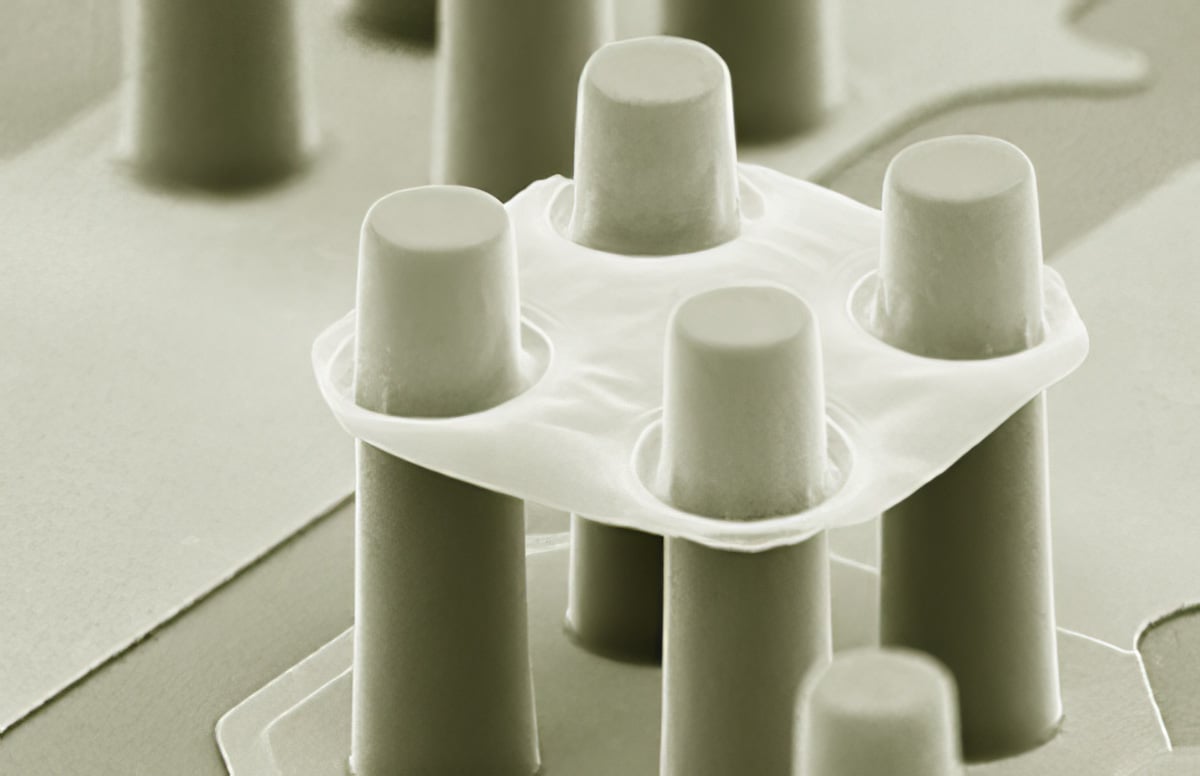

Wet etching – metal/glass

  • Silicon isotropic etching (depth control of target ± ~3 µm)
  • Glass isotropic etching from 0.4 µm to 300 µm (depth control of ± 0.2 µm on a 16 µm etch, glass CD: 90 µm ± 3 µm )
  • HF oxide sacrificial etch
  • Liftoff process
  • Critical point dryer
  • Thin film etching: metals and dielectrics
  • Standard wet cleaning processes: acids, bases and solvents
  • Advanced wet processes: spin etcher, megasonic and recirculating baths
text image

Teledyne MEMS Capabilities

We blend MEMS applications experts together with process performance champions to design process flows for robust, cost-effective fabrication to match customer requirements. Our project teams strive for deep insights to their customers’ needs and close communications throughout the relationship.

background image

Do you have any questions?

Select Teledyne as your partner to move your MEMS device from concept to mass production.
